HAIMER – Tool Holders – Steep taper ASME B5.50
The traditional interface for milling spindles ASME B5.50 distinguishes itself through its extremely robust design. Its field of application ranges from fine machining to heavy duty roughing.
The tool holder is pulled in the milling spindle with the help of an additional pull stud. The centering takes place via the taper contact. Therefore, the ASME B5.50 steep taper interface is primarily suitable for applications with a spindle speed of up to 12,000 rpm.
Available Models
Technical Specifications
| Clamping Ø D1 | 3 mm. |
| Ø D2 | 10 mm. |
| Ø D3 | – |
| L | 9 mm. |
 |
Technical Specifications
| Clamping Ø D1 | 6 mm. | |
| Ø D2 | 21 mm. | |
|---|---|---|
| Ø D3 | 27 mm. | |
| L | 36 mm. | |
| ||
Key Features

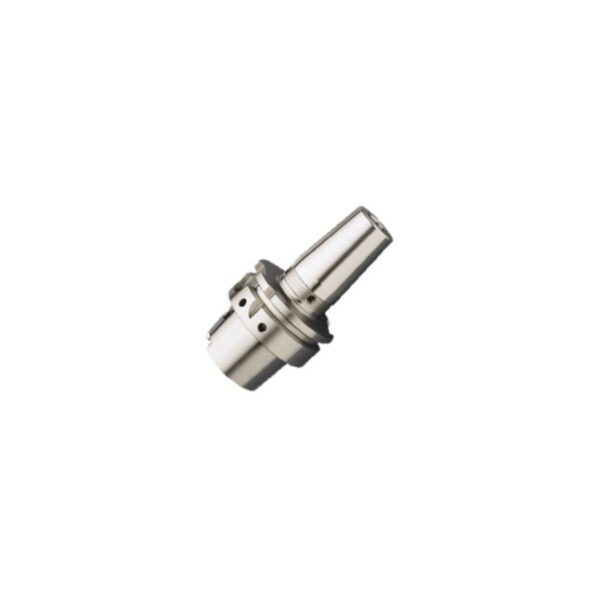

HAIMER – Tool Holders ASME B5.50 | CAT40
- Heat resistant hot-working steel.
- Hardened 54-2 HRC.
- For HSS and solid carbide tools.
- Shank tolerance h6.
- With threaded holes in order to balance with balancing screws.
- Cool Jet coolant bores that can be sealed included.
- Cooling with Cool Flash for an extra charge.

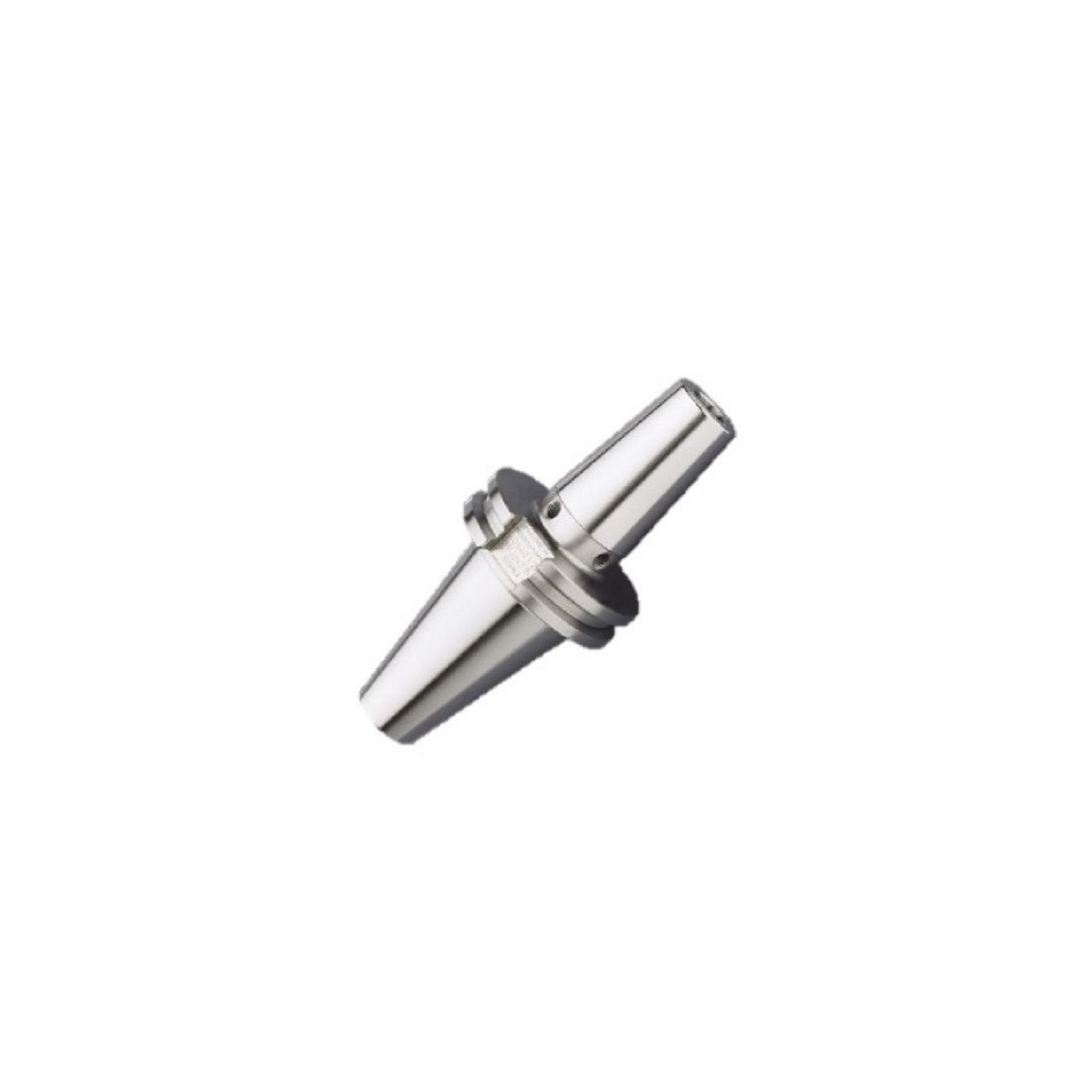

HAIMER – Tool Holders ASME B5.50 | CAT50
- Heat resistant hot-working steel.
- Hardened 54-2 HRC.
- For HSS and solid carbide tools.
- Shank tolerance h6.
- With threaded holes in order to balance with balancing screws..
- Cool Jet coolant bores that can be sealed included.
- Cooling with Cool Flash for an extra charge.
Safe-Lock™ – The Pull-Out Protection For Your Shank Cutting Tools
Keys in the chuck grip the grooves in the tool shrank. In addition to the frictional clamping force of the shrink fit chuck, the tool is held using positive locking. As a result, micro-creeping is effectively prevented.
Key Industries
- Aerospace
- Automotive
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
HAIMER is a family run, medium size company located in Igenhausen, Bavaria near Augsburg, Germany. We design, produce and sell innovative, high precision products for metal cutting as well as for other branches including automotive, aerospace, energy, rail and general machining. In addition to our large offering of tool holders in all popular interfaces and lengths, including our shrinking and balancing machines, as well as our 3-D Sensors, solid carbide cutting tools, our product offering now also includes tool presetting machines.
