HAIMER – Tool Holders – Hollow Taper Shank DIN 69893
The interface DIN 69893 has become the new standard for machining centres. The holder is clamped via its taper with flange contact surface. By doing so, a highly accurate centring and fixed axial position of the holder in the spindle is granted with a high repetitive accuracy when exchanging the tools.
Description
In the DIN 69893-1 HSK-A interface design an additional torque transmission takes place at the taper shank with drive keys. DIN 69893 HSK-A/HSK-E/HSK-F is mainly used in high-speed machining.
Technical Specifications
| Tool holder surface hardness | 58 – 2 HRC | |
| Tensile strength in core min. | 1000 N/mm² | |
|---|---|---|
| •All functional surfaces fine machined. •More accurate than DIN. •Symmetric force transmission to clamping shoulder. | ||
Key Features

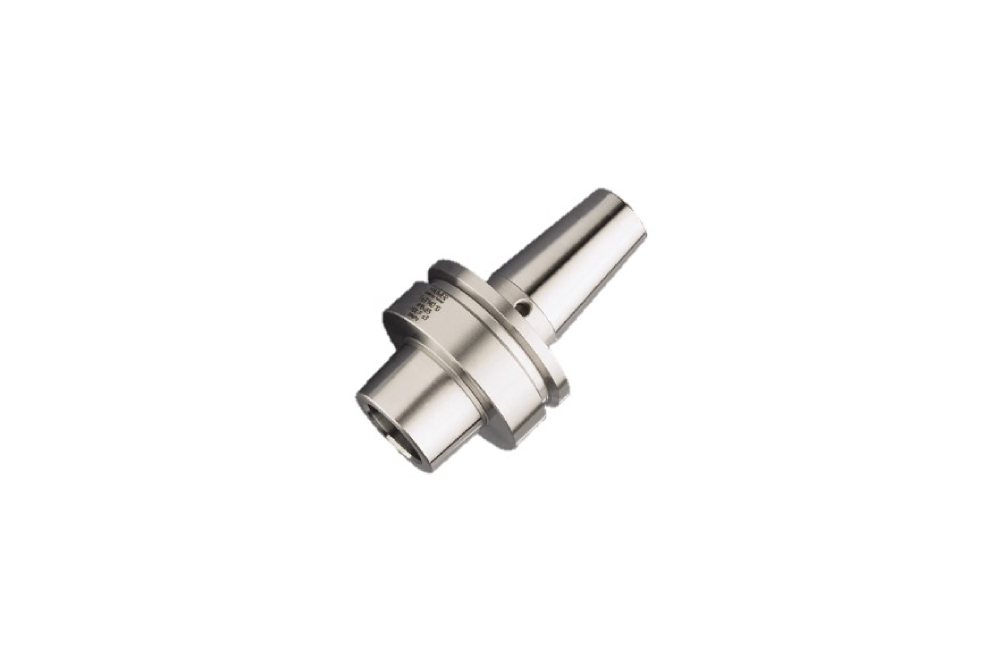

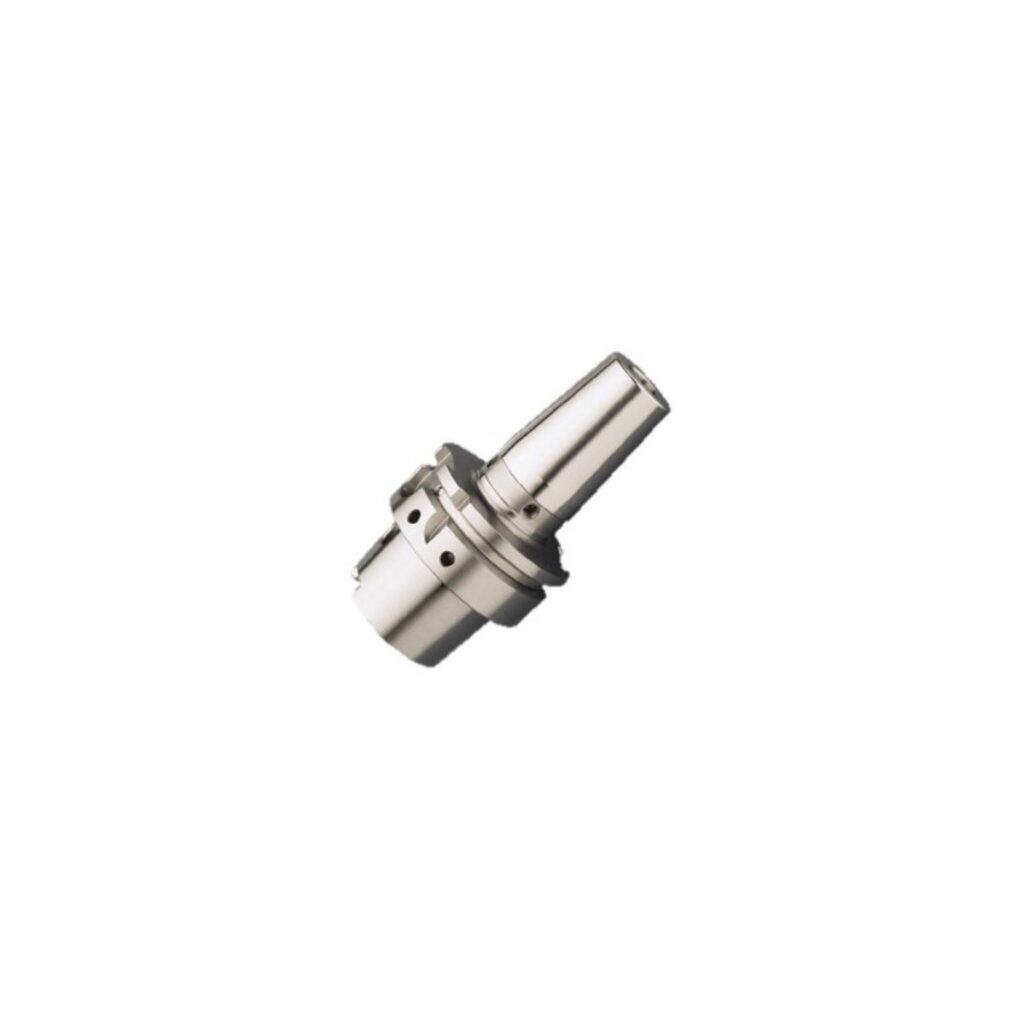

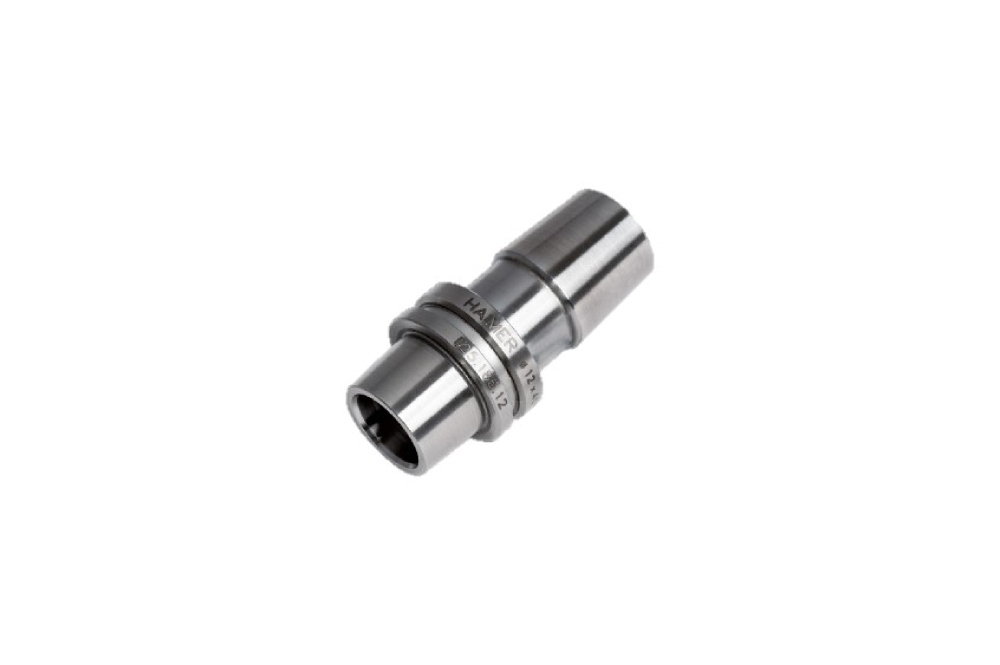

HAIMER – Tool Holders Hollow taper shank DIN 69893 | HSK-F80
- Heat resistant hot-working steel.
- Hardened 54-2 HRC.
- For HSS and solid carbide tools.
- Shank tolerance h6.
- With threaded holes in order to balance with balancing screws.
- Cooling with Cool Jet available for an extra charge.
- Included in delivery: Back-up screw.
Key Industries
- Automotive
- Die & Mould
- Semiconductor, Solar & Electronics
- Machinery & Manufacturing
