  • NANOSIGHT Pro Brochure


Characterizing Nano- and Biomaterials has never been so quick, easy, and accurate

With the introduction of the NanoSight Pro, Malvern Panalytical provides the best in class, simple and rapid NTA solution for nano- and biomaterials characterization.   The combination of advanced engineering and a blend of smart features assures NTA measurements are efficient, quick, and accessible to all users. Powered by machine learning, NS Xplorer software enables automated measurements, removes subjectivity, and provides the highest quality size and concentration data for both, the light scatter and fluorescence analysis.   Interchangeable lasers allow application flexibility, whilst Smart Manager connection assures robustness without a worry for quality issues or downtime.

Technical Specifications

General
TechnologyNanoparticle Tracking Analysis
Size range (diameter)110 nm – 1000 nm
Particle concentration2106 to 109 particles / mL
Minimum sample volume250 μL
Advanced Concentration AlgorithmConcentration Upgrade
System
Product ComplianceProduct Laser Class 1 (BS EN 60825-1:2014)
EMC Directive (EN IEC61326-1:2021)
Low Voltage Directive (IEC 61010-1:2010
IEC 61010-1:2010/AMD 1:2016)
CameraHigh sensitivity sCMOS (USB-3)
Laser informationBeam wavelength (maximum power output):
405 nm, max power <70 mW
488 nm, max power <55 mW (blue)
532 nm, max power <60 mW (green)
642 nm, max power <50 mW (red)
Temperature control range5 °C below ambient up to 70 °C
Temperature readoutAutomatic
Syringe pumpContinuous sample flow with 1 mL syringes
Dimensions (W, D, H)34 x 35 x 25 cm
Weight of instrument11 kg
Weight of laser module1.6 kg
Power requirementsAC 110 – 240 V, 50-60 Hz, 4.0A
Ambient operating conditionsUp to 80% rH at 31 °C then decreasing linearly to 50% at 40 °C

Key Features

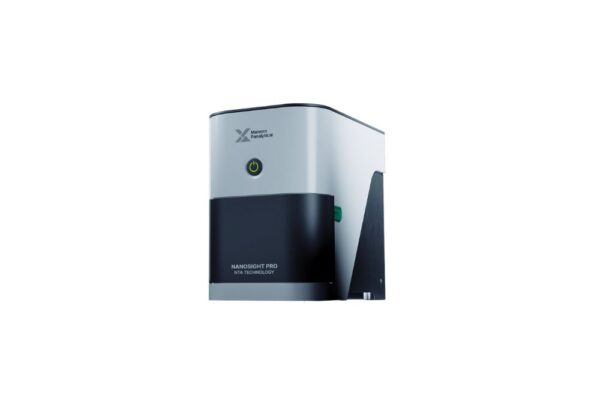

NanoSight Pro

  • Quick install & analysis

NanoSight Pro can be used by every user in every lab. Smart installation allows you to get up and running quickly. With minimum setup, easy operation and intuitive NS Xplorer software you can measure your samples in minutes.

  • Intelligent & automated

Powered by machine learning and intelligent features, NanoSight Pro automates processing and eliminates human error, delivering superior particle identification and precise particle tracking for the highest quality and reproducible data.

  • Highest resolution

The NanoSight Pro measures nanoscale particles in the range of 10 nm – 1000 nm including low scattering and biological particles. Particle–by–particle analysis assures high resolution size and concentration data with visual confirmation.

  • Power of fluorescence

In addition to light scatter, fluorescence signals can be detected from fluorescently tagged biologics or synthetic particles providing even greater insight into your sample. Interchangeable laser modules with the choice of four excitation wavelengths can be used along with the matching long pass filters for the optimum setup supported by analysis in flow for better sampling and tracking of even photobleaching samples.

The greater fluorescence sensitivity enables subpopulation identification including surface markers, internal cargo detection or depreciation of contaminants sensitivity.

Nanoparticle Tracking Analysis – Nanosight Pro

The quickest, easiest and most detailed NTA solution to characterization bio and nano materials.

Key Industries

  • Aerospace
  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Electronics
  • Environmental
  • Food & Beverage
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Optical
  • Paper & Wood
  • Pharmaceutical
  • Polymers, Plastics and Rubbers
  • Powders & Pigments / Coating
  • Semiconductor, Solar & Electronics
  • Textile

Brand

Malvern Panalytical

Malvern Panalytical was formed by the merger of Malvern Instruments Limited and PANalytical B.V. on 1st January 2017, has headquarters in both Almelo (the Netherlands), and in Malvern (UK), and employs over 2,000 people worldwide. The combined entity is a strong player and innovator in the materials characterization market and will leverage the strengths of the individual companies in their end markets, ranging from building materials to pharmaceuticals and from metals and mining to nanomaterials.
