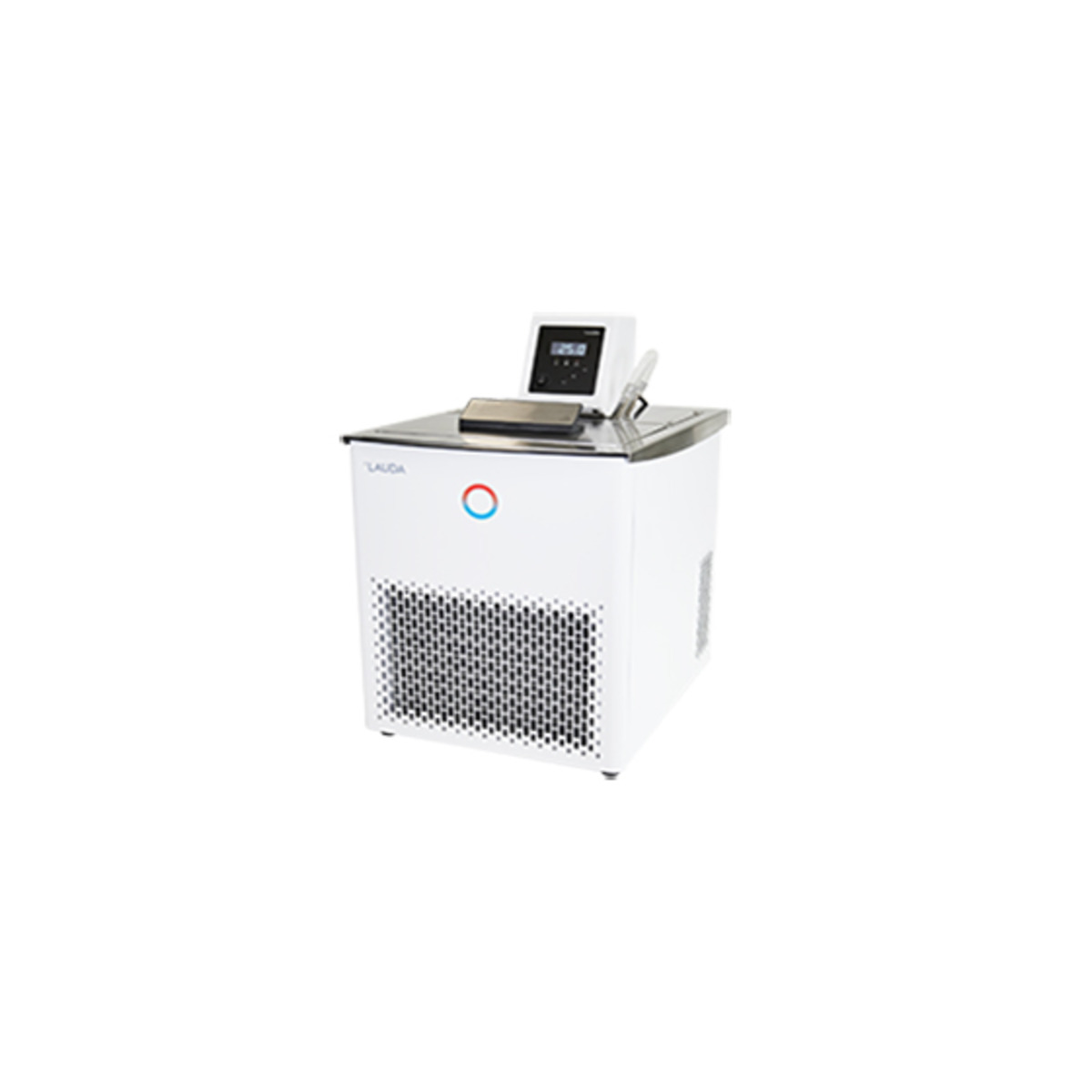

Designed specially for cost-effective laboratory thermostatting, LAUDA Alpha Cooling Thermostats strike a great balance between performance and value. A working temperature range between -25 and 100°C allows LAUDA Alpha Cooling Thermostats to cover most of basic laboratory thermostatic applications. LAUDA Alpha Cooling Thermostats’ exceptional cost-efficiency is achieved by minimizing unnecessary features, with more focus and user-friendliness and reliability.

Reliable Technology, Modern Design, Favorable Price

LAUDA Alpha Cooling Thermostats are suitable to be operated with non-flammable liquids such as water and water/glycol, and for both internal and external thermostatting applications. LAUDA Alpha Cooling Thermostats are also equipped with the capability of 1-point calibration, and this can be carried out easily by the user.

LAUDA Alpha Cooling Thermostats are designed with cooling technology which enables exceptional cooling performance through the entire temperature range from -25°C up to 100°C. A drain connection on the rear side of the devices empties the heat transfer liquid. Standard equipment includes bath covers and pump kits.

Technical Specifications

Working temperature range-25-100°C
Temperature stability0.05 ±K
Heater Power1.5 kW
Pump pressure max.0.2 bar
Pump flow max.*15 L/min
Bath depth160 mm

Available Models

Technical Specifications

Working temperature range-25-100°C
Temperature stability0.05 ±K
Heater Power1.5 kW
Cooling output at 20°C0.225 kW
Pump pressure max.0.2 bar
Pump flow max.*15 L/min
Bath volume5-7.5 L
Bath Opening165 mm × 177 mm
Bath Depth160 mm

Technical Specifications

Working temperature range-25-100°C
Temperature stability0.05 ±K
Heater Power1.5 kW
Cooling output at 20°C0.325 kW
Pump pressure max.0.2 bar
Pump flow max.*15 L/min
Bath volume9.5-14.5 L
Bath Opening300 mm × 203 mm
Bath Depth160 mm

Technical Specifications

Working temperature range-25-100°C
Temperature stability0.05 ±K
Heater Power1.5 kW
Cooling output at 20°C0.425 kW
Pump pressure max.0.2 bar
Pump flow max.*15 L/min
Bath volume14-22 L
Bath Opening350 mm × 277 mm
Bath Depth160 mm

Key Features

  • Easy and intuitive menu navigation and legible display values
  • Low level protection with acoustic and visual alarm to shut off heater and pump when heat transfer liquid is too low
  • Timer function to automatically shut down after preset time
  • Automatic compressor control supplies strong cooling output only when needed improves cost efficiency and equipment life
  • Fitted with screw clamp to allow easy change to different bath vessels with wall thickness of up to 30 mm
  • Variable flow rates via inserts and fittings adapt rate of circulation to the size of the bath
