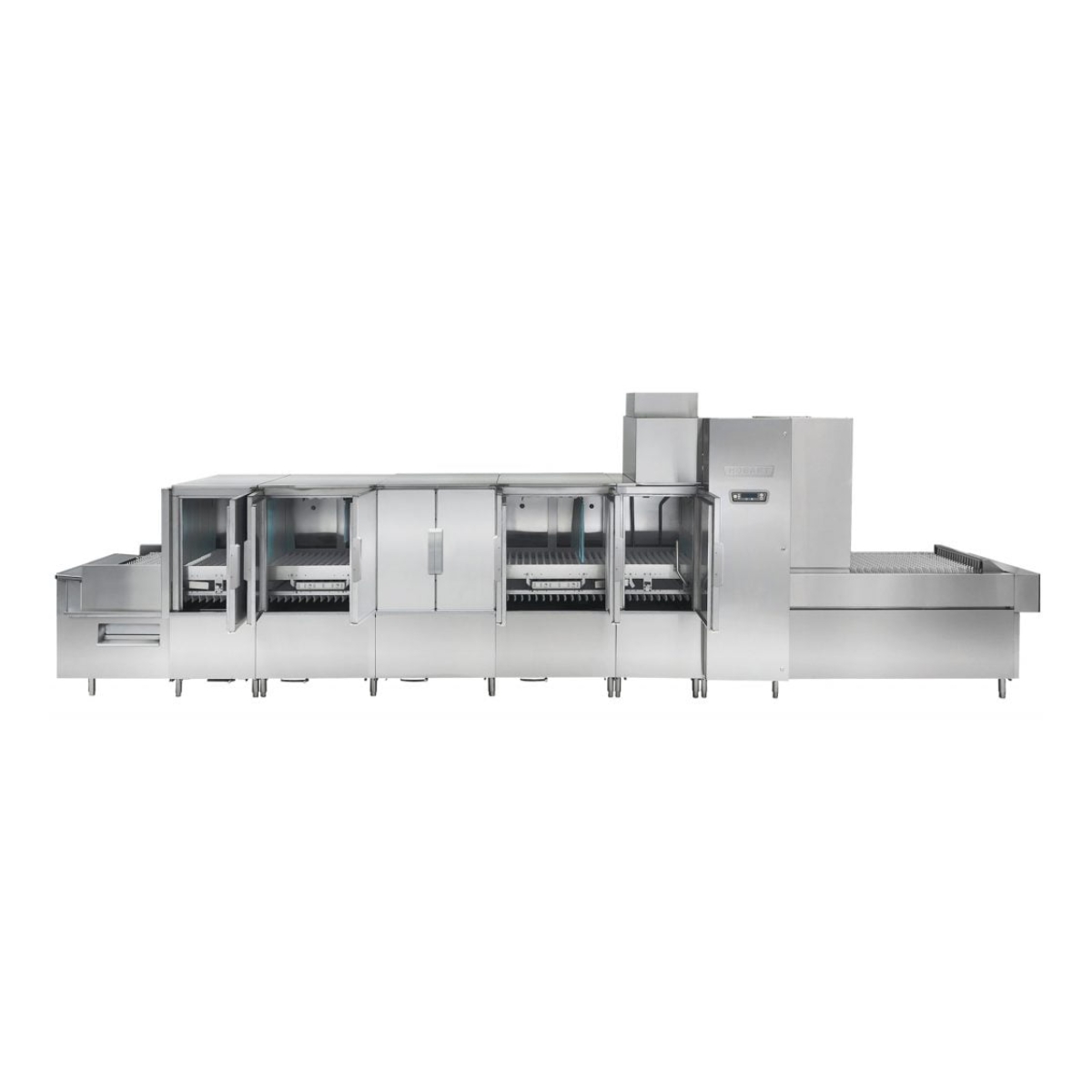

Hobart – Warewashing – Flight Type Dishwasher
With its innovative flight-type design, the Hobart ensures a continuous flow of dishes, utensils, and cookware through the washing process, maximizing throughput and minimizing wait times.
Description
The Hobart Flight Type Dishwasher offers cutting-edge technology for efficient, eco-friendly warewashing with reduced energy, water, and detergent consumption.
Key Features
- Reduces energy losses by up to 30% with enclosed hot zones.
- Minimizes detergent use by up to 70%, optimizing costs.
- Features self-cleaning and twinLINE technology for enhanced efficiency.
Available Models
Technical Specifications

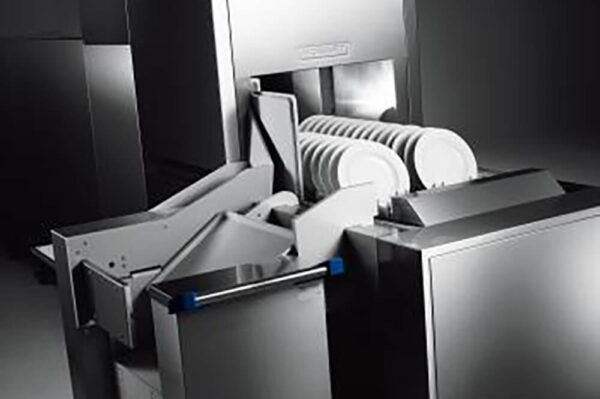

Attractive on the outside and innovative on the inside. The new PREMAX FTPi and PROFI FTNi are eye-catching on first glance with their clear-cut design and aesthetic styling. Under the attractive stainless steel facade of the generation 2014 HOBART presents two world debuts: the AUTO-CLEAN Self-Cleaning System and twinLINE technology. Further technical innovations increase efficiency and simplify the operation of the machines.
Key Features
- Reduces evaporation losses
- Reduces energy losses by up to 30 % thanks to enclosed hot machine zones
- Reduces the primary energy demand
- Reduces detergent consumption by up to 70 %
- Detergent dosing only necessary for approx. 100 l/h of regeneration water
- Environmentally friendly
- 6 upper and 5 lower wash arms guarantee an optimal wash result
- More active contact of wash water with wash ware
- Precise spray pattern due to each Wide Angle Nozzle FAN
Technical Specifications
Attractive on the outside and innovative on the inside. The new PREMAX FTPi and PROFI FTNi are eye-catching on first glance with their clear-cut design and aesthetic styling. Under the attractive stainless steel facade of the generation 2014 HOBART presents two world debuts: the AUTO-CLEAN Self-Cleaning System and twinLINE technology. Further technical innovations increase efficiency and simplify the operation of the machines.
Key Features
- Available for models with L- or S- Pre-wash
- Active soiling removal from the zone
- Constant high-level wash water quality
- Reduction in water, energy, and chemicals consumption
- Reduces refilling during operation
- Convenient removal of soiling at the end of the diswashing shift
- No soiling spreading around the appliance
Technical Specifications
| Cold water connection | G 3/4, max. 200 l/h |
| Hot water connection for separate tank fill (optional) | G 3/4, max. 105 l/h |
| Drain | DN 50 |
| Power supply | 400 / 50 / 3 / N |
| Ventilation | Ø 301 mm inner diameter |
| Main switch | up to 70 A |
| Empty tube for rinse agent | DN 50 |
| Condensate conn. | DN 25 |
| Steam connection | DN 25 |
The flight-type model for trays FTT is the best solution to rationalise with good economic sense in your kitchen. Whether as an automatic supplement to manual dishwashing or as part of a semi- or fully-automatic machine. The FTT is the ideal component for conveying equipment and the transfer of trays. Even existing units can be automated afterwards. In combination with another component, the lifting magnet for cutlery, every machine can be extended cheaply to a semi-automatic unit. Due to its compact design it is suitable even for a very small kitchen. Relieve your personnel- no manual loading or unloading of trays. The FTT washes the kitchen ware at the same time as the trays so no complicated intermediate storage is necessary. Compared with conventional washing of trays the FTT saves valuable operating time and costs, as it is adjusted to this special wash item.
Key Features
- Continuous tray transport
- Including autotimer and main switch
- Including door insulation
- Independent from inlet water pressure
- Automatic feed and unload
- Interface to HOBART conveyors
- High pressure wash system
- High pressure dryer
- Easy to install
Technical Specifications
Hobart’s advanced Opti-Rinse technology is the industry’s most advanced water- and energy-saving rinse system. Opti-Rinse technology creates a strong and powerful spray by forming an S-shaped pattern across the surface of the ware. The pattern means a saving of more than 50% in water and energy, and even helps you save additional money by reducing the size of the booster heater required.
Technical Specifications
Four new innovative features solves the challenges of the six elements of warewashing performance – utilities, labor management, cleaning performance, soil management, life cycle management and chemical optimization – while providing the lowest total cost of ownership of a flight-type in the industry.
- Ventless Technology yields the industry’s first ventless flight-type, which does not require a direct vent connection and provides savings of up to 22% annually over the previous model.
- Automatic Soil Removal uses specialized soil removal wash arms in a dedicated section to pump food soil from the machine before it reaches the prewash section, reducing tank refills per day and eliminating the need to pre-rinse ware prior to loading.
- Auto Clean allows operators to quickly and easily clean the machines at the touch of a button, saving up to 30 minutes of labor per day and using no additional chemical. Capless wash arms and the ability to leave curtains in the machines during the cycle aide in ease of use.
- Auto Delime makes the FT1000 the first flight-type with the ability to automatically delime the booster. Auto Delime also saves up to one hour of labor per delime cycle, and reduces delime solution by up to 50% with an automated process.
