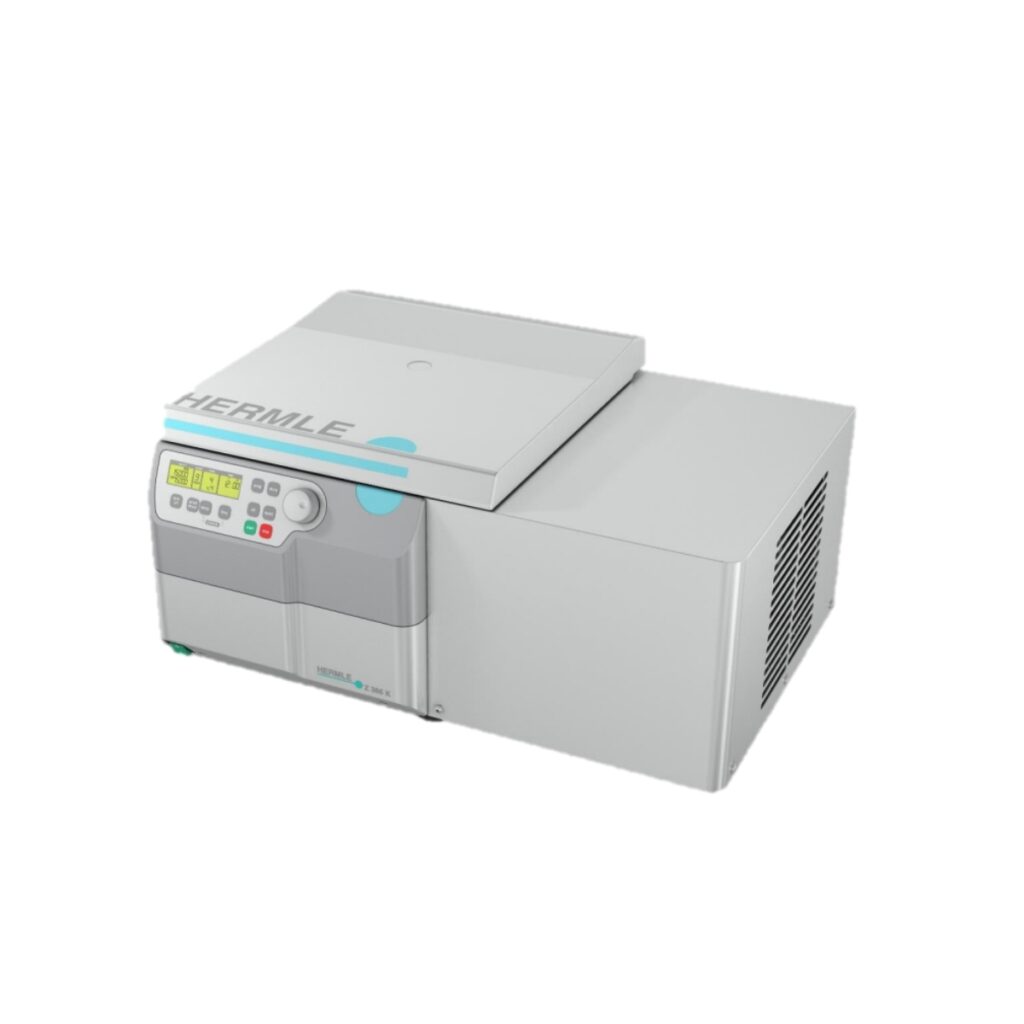

HERMLE – Universal Centrifuge – Z 366 K
These universal table top centrifuges Z 366 and Z 366 K putting new scales regarding the versatility, running features, easy handling and design. Both, the tube capacity of 40 x 15 ml conical tubes and centrifugal forces up to 24325 xg, making these table top centrifuge Z 366 K into a universal high-powered centrifuge.
Display Functions
- Diagnostic program
- Program memory for 99 programs
- Quick-key for short runs
- Pre-cooling program
- Standstill cooling
- 10 acceleration and 10 deceleration rates, possibility of unbreaked deceleration
- Permanent indication of preset and actual values
- Pre-selection of speed or RCF in steps of 50/10 increments
- Pre-selection of running time from 10 sec to 99h 59min or continious
- Simple one handed opertaion
Technical Specifications
| max. Speed | 16000 rpm |
| max. RCF | 24325 xg |
|---|---|
| max. Volume | 6 x 250ml |
| Speed range | 200 – 16000 rpm |
| Temperature range | -20°C to 40°C |
| Running time | 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments |
| Dimensions (WxHxD) | 72 cm x 36 cm x 51 cm |
| Weight | 77 kg |
Key Features
Z 366 K
- Brushless induction drive
- Microprocessor control
- Active imbalance detection and cut-off
- Motor driven lid lock
- Automatic rotor identifi cation system with over speed protection
- Audible signal at the end of each run
- Emergency lid lock
- Stainless steel chamber
- CFC-free refrigeration system (-20° to +40°C)
- Autoclavable rotors
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
Since 1956 – for more than 50 years – HERMLE centrifuges are being sold to all parts of the world. Once a division of Berthold Hermle AG in Gosheim, HERMLE Labortechnik GmbH in Wehingen is a company of its own since the end of 1993. The whole production program has been entirely renewed during that time. Each unit stands for efficiency, versatility and easy handling. In the meantime our centrifuges are welcome in the fields of medicine, research and industry. A wide range of rotors is available for the different models. All centrifuges are equipped with a microprocessor and a maintenance-free direct current motor. The refrigeration system is of course CFC-free.
