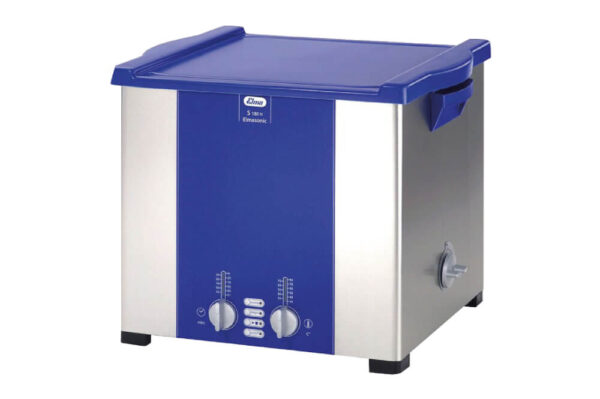

Elma – Ultrasonic Cleaners – Elmasonic S
Elmasonic S ultrasonic devices are available in 16 different sizes ranging from 0.8 to 90.0 litres maximum filling volume. They are equipped with an ultrasonic frequency of 37 kHz, functions like Sweep, Degas and Auto-Start and thus very versatile.
The clearly arranged control panel is user friendly designed and splash-water protected. The cleaning process can be supported by an optional selectable, run-dry-proven heating. Furthermore Elmasonic S devices are very user-safe and shut down after 12 hrs. of operation.
Description
Elmasonic Select offers 5 ultrasonic modes to optimize parts cleaning, sample preparation, and solvent degassing. Dynamic mode cleans thoroughly at high intensity. Eco mode is quiet, gentle, and energy-saving. Mix, disperse, and dissolve samples in Pulse mode. Save 4 programs for quick call up and reproducible results. Choose from 11 models with tank capacities from 0.7 to 24 gallons.
Technical Specifications
| Model | S 30 H | S 60 H | S 180 H |
| Max. tank capacity (l.) | 2.75 | 5.75 | 18.0 |
|---|---|---|---|
| Tank operating capacity (l.) | 1.9 | 4.3 | 12.9 |
| Ultrasonic power effective (W.) | 80 | 150 | 200 |
| Heating power (W.) | 200 | 400 | 800 |
| Weight (Kg.) | 2.1 | 5.1 | 8.5 |
Key Features
- Powerful and highly versatile ultrasonic cleaning devices with 37 kHz ultrasonic frequency.
- Switchable Sweep-function for an even distribution of the ultrasonic power and effect.
- Degas-function for quick degassing.
- Temperature-controlled Auto-Start.
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Education & Academics
- Electronics
- Energy
- Machinery & Manufacturing
- Medical
- Optical
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Semiconductor, Solar & Electronics
Additional information
| Applications | General lab equipment |
|---|---|
| Markets | Global, Myanmar, Thailand |
| Solutions | Ultrasonic Cleaning |
