Dubor – Spray Technology – TSA Airmix
DKSH offer DÜBÖR special release agents for bread cutters, bread slicers, cutting frames, dough dividers, dough funnels and dough shelves.
Description
With the Airmix method can process all known viscosities, nearly mist-free dispersion with precise dosage
Key Features

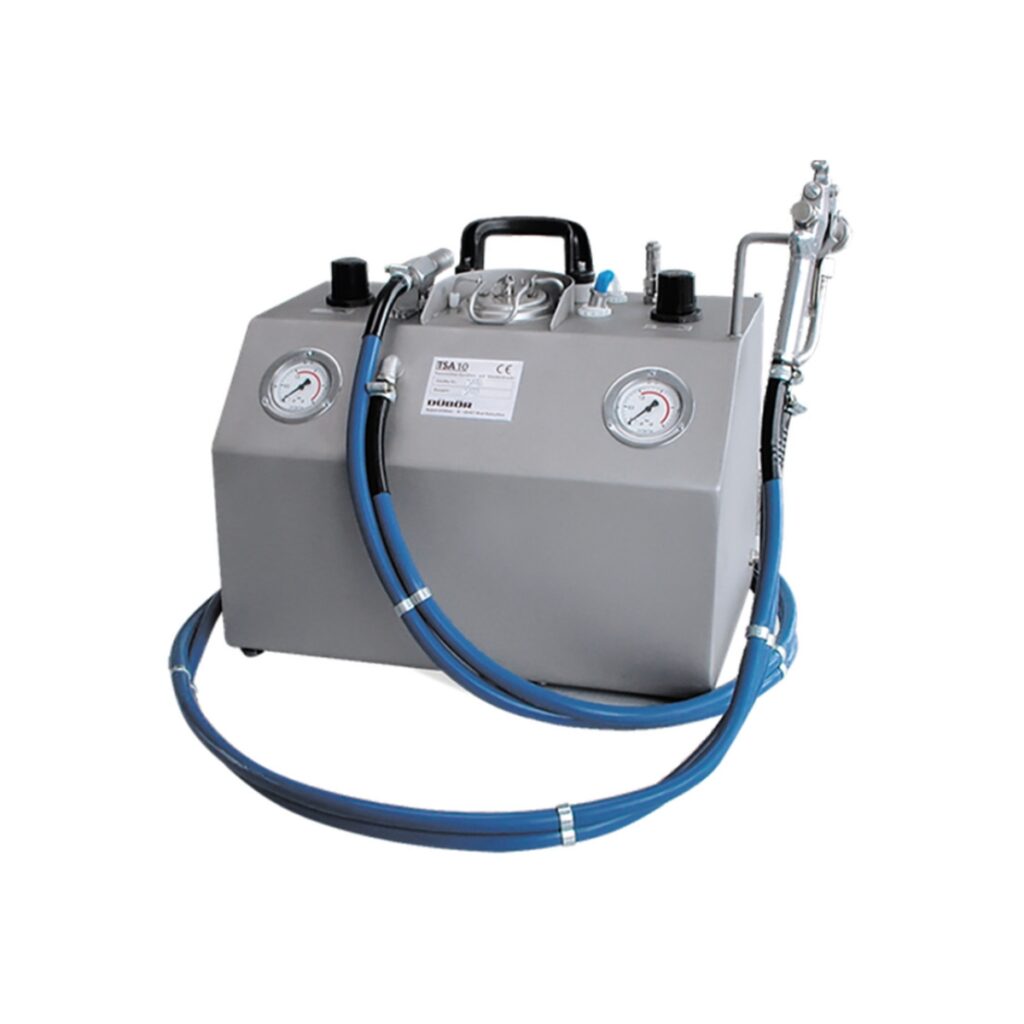

- Airmix low pressure manual spraying device
- Compact tabletop device, also available with wall bracket
- For all release agents
Available Models
Technical Specifications
| Max. operating pressure | 2,5 bar, oil-free |
| Working pressure | 0,1 – 0,5 bar |
| Filling volume | 5 l |
| Compressed-air consumption | approx. 60 l / min |
| Dimensions (W x D x H) | 300 x 300 x 330 mm |
| Empty weight | approx. 6 kg |
Key Features
- low-pressure handspray unit
- small, compact spray unit
- low space requirement, portable
- stainless steel pressure tank
- 5 liters
Technical Specifications
| Max. operating pressure | 2.5 bar, oil-free |
| Working pressure | 0.1-0.5 bar |
| Filling volume | 10 litres |
| Compressed-air consumption | approx. 120 l / min. |
| Dimensions (W x D x H) | 510 x 350 x 460 mm |
| Weight | approx. 18 kg |
Key Features
- low-pressure handspray unit
- compact tabletop unit
- stainless steel pressure tank
- 10 liters
Technical Specifications
| Max. Operating pressure | 2,5 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | approx. 19,5 litres |
| Compressed-air consumption | approx. 60 l / min. |
| Dimensions (W x D x H) | 400 x 400 x 800 mm |
| Weight | approx. 12 kg |
Key Features
- low-pressure Handspray unit
- wheeled
- low-pressure / Airmix
- stainless steel pressure tank
- 19,5 liters
Technical Specifications
| Max. Operating pressure | 2,5 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | approx. 38 litres |
| Compressed-air consumption | approx. 120 l / min. |
| Spray output | 380 g / Min. |
| Weight | approx. 30 kg |
Key Features
- low-pressure spray unit
- wheeled
- stainless steel pressure tank
- drain tap
- 38 liters
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | 19,5 litres |
| Dimensions (W x D x H) | 530 x 475 x 1430 mm |
| Weight | 28 kg |
Key Features
- low-pressure Handspray unit
- for all release agents
- wheeled
- 19,5 liters
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions ( W x D x H) | 530 x 475 x 1430 mm |
Key Features
- mobile spray unit
- for all release agents
- wheeled
- low-pressure / Airmix
- 30 liter returnable KEG system
Technical Specifications
| Max. compressed-air | 4 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions (W x D x H) | 470 x 230 x 630 mm |
| Weight | 18 kg |
Key Features
- spray unit for all release agents
- as wall or table unit
- space-saving
- low-pressure / Airmix
- for use with all container sizes
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions (W x D x H) | 530 x 475 x 1430 mm |
Key Features
- mobile spray unit
- for all release agents
- wheeled
- low-pressure / Airmix
- for 15 liter can
Additional information
| Applications | Food processing |
|---|---|
| Markets | Global, Myanmar |
| Solutions | Bakery Machines |
