Atlas Copco – Compact oil-free piston compressor – LFx
Oil-Free Air for a wide range of applications
Built for high performance and a long lifetime, Atlas Copco’s small-capacity piston compressors provide you with a reliable, oil-free solution for your low air demands. They ensure a highly energy-efficient compressed air production thanks to the unique, patented “Super-flow” compressed air inlet system. The LFx compressors’ capacity ranges from 1.02 up to 2.53 l/s (2.16 up to 5.36 cfm), with an optional 1- or 3-phase supply and a maximum working pressure of 10 bar (145 psi). Furthermore, with their small and compact design, they offer maximum installation flexibility.
LFx Powerbox
The Powerbox is a complete replacement package for receiver mounted units or for customized OEM applications. The Powerbox has noise level between 62-64 dB(A) which is quite low

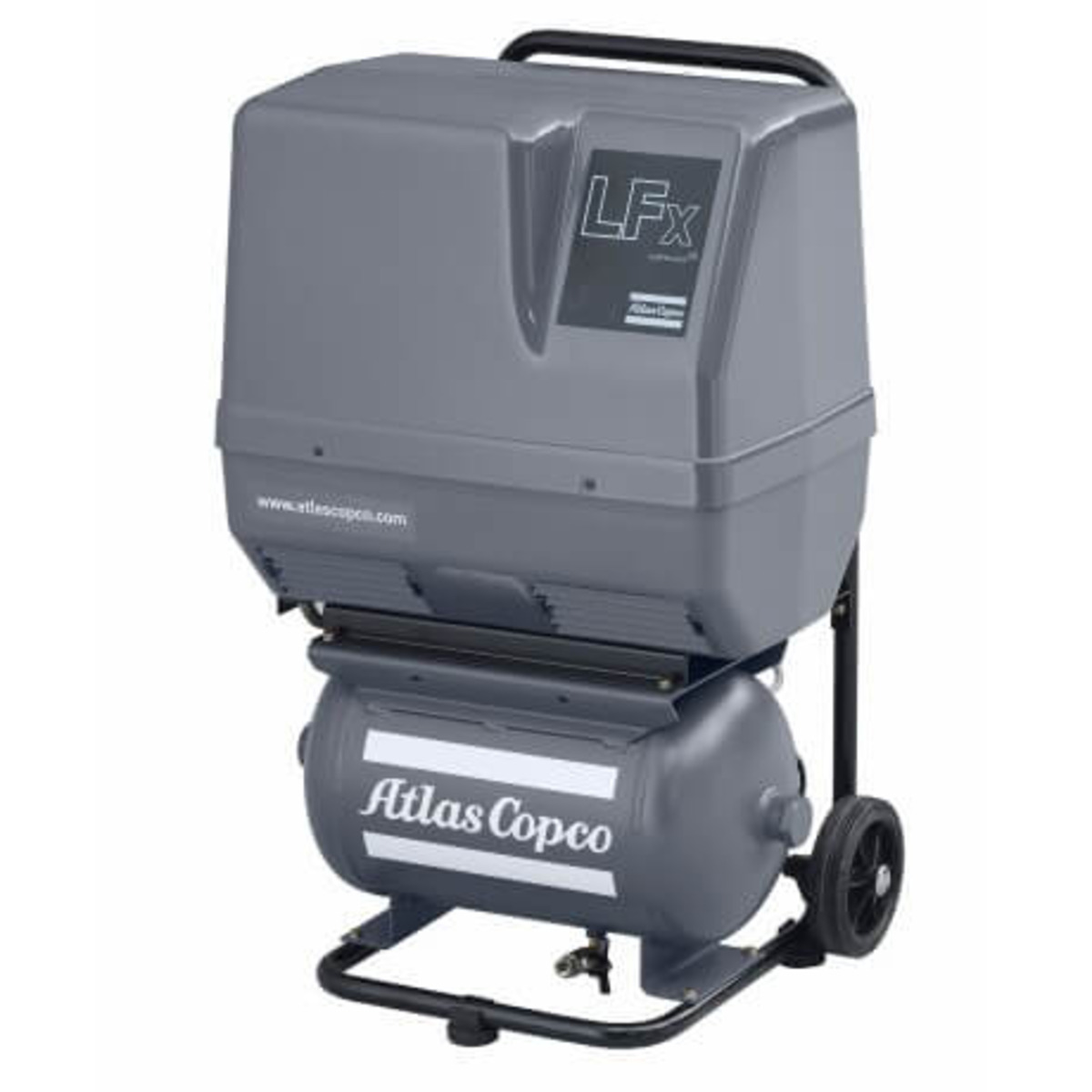

LFx Trolley
As the name suggests, the LFx Trolley comes with wheels for easy transportation. LFx Trolley includes the Powerbox mounted on a 20 I internally epoxy coated air receiver for the purpose of storing oil-free clean air. Some of the features that come with the LFx Trolley include
- the standard pressure switch for start/stop regulation
- safety valve
- pressure regulator
- pressure gauge
- 3m cable
LFx Tank Mounted
LFx Tank Mounted is the Powerbox mounted on a 50 or 90 I internally epoxy-coated air receiver to store oil-free clean air. With the LFx Tank Mounted come
- standard pressure switch for start/stop regulation
- safety valve
- pressure regulator
- pressure gauge
- 3m cable
Technical Specification
| Capacity FAD l/s | 1.02 l/s – 2.53 l/s |
| Capacity FAD | 0.06 m³/h – 0.12 m³/h |
| Working pressure | 0 bar(e) – 0 bar(e) |
| Installed motor power | 0.55 kW – 1.5 kW |
Key Features
LFx compact oil-free piston compressors
Flexible Installation
The Atlas Copco LFx’s small and compact design offer maximum installation flexibility. The LFx is both suitable for stand-alone use and integration in your OEM product
High Reliability
Thanks to a unique, robust design and the optimal combination of quality materials, LFx compressors offer improved performance and extended product lifetime
Compact 100% Oil-free Air
Thanks to a unique, robust design and the optimal combination of quality materials, LFx compressors offer improved performance and extended product lifetime
Easy Maintenance
All the LFx’s components and service points are easily accessible. No oil changes needed
Quiet Operation
The LFx comes standard with a silencing hood. Its noise levels are as low as 62 dB(A), so you can install it close to the point of use
Key Industries
- Automotive
- Chemical
- Electronics
- Food & Beverage
- Oil & Gas
- Pharmaceutical
- Textile
